360° Seamless Bottle Print

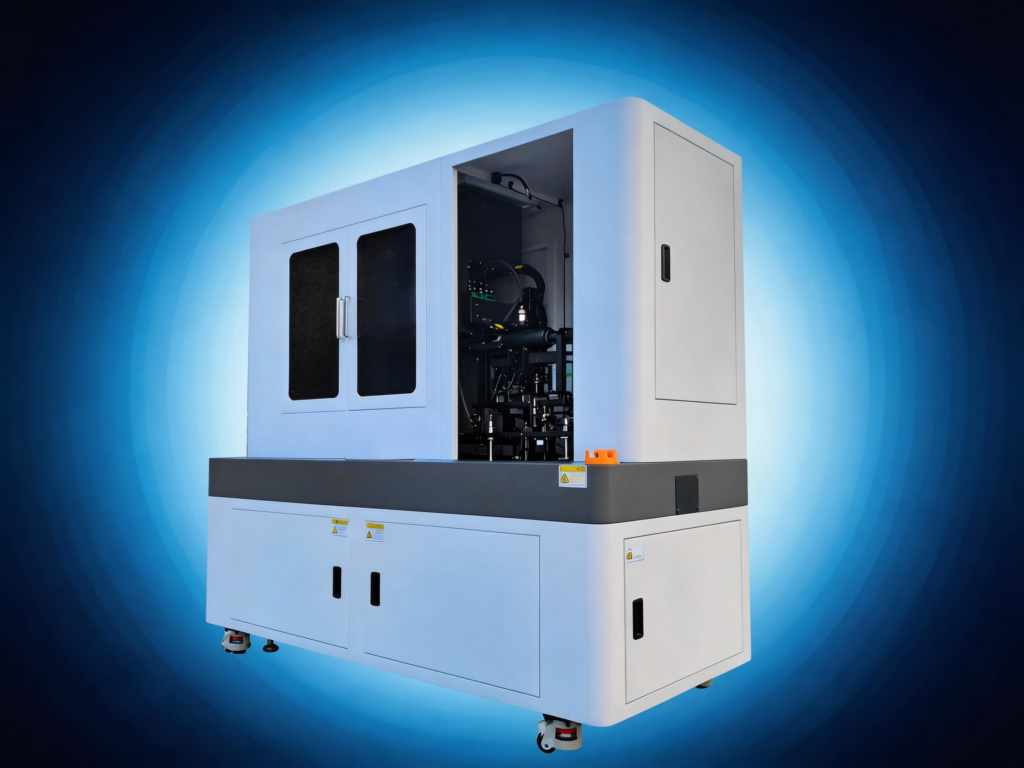

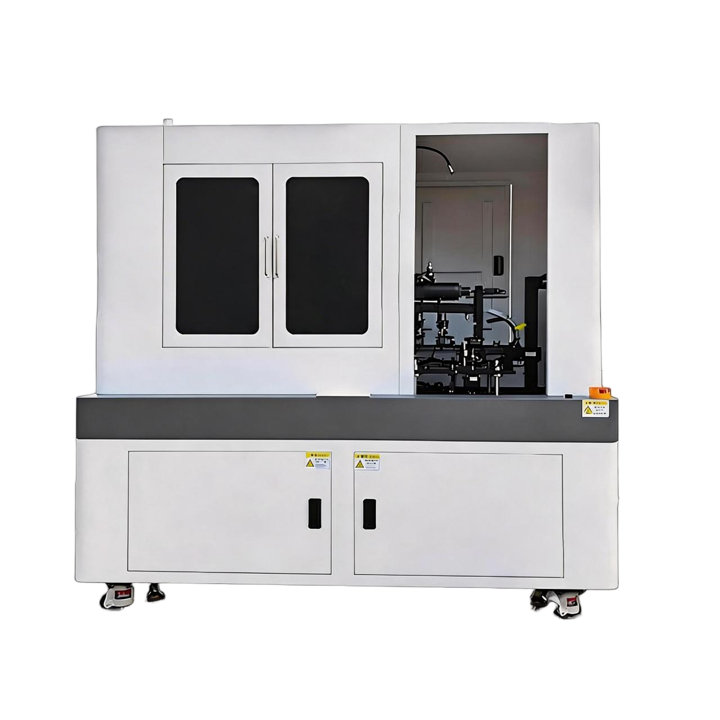

Lance-4：UV bottle printer

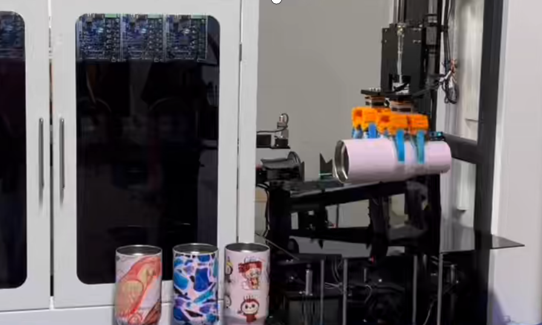

Option Automatic Loading
Can be upgraded to fully automatic loading and unloading, can beupgraded before purchase or after install in your site.
| Model | Lance-4 | Cleaning system | Auoto position cleaning system | |
| Diameter | 45 to 20mm | Date interface | Gigabit Enternet | |
| Configuration | Toshiba CF3*4 or 5Ricoh Gen6*4 or 5 | RIP software | RIPrint | |
| Print length | 40mm－270MM | Power | 1 Phase 50/60HZ AC110/220V±>10A Ground wire | |
| Print mode | Color white varnish | Environment | Temperature | 20℃ – 30℃ |
| Print head | Toshiba CF3Ricoh or Ricoh Gen6 | Humidity | 30% – 60% | |
| Resolution | 600*1800DPI | Dust | Office environment | |
| Ink drop | 3.5PL | Machine dimension | 1950mm*870mm*1800mm | |
| Print speed | As fast as 20S/pcs | Certification | CE | |
| Color | W-V+K-C-M-Y+Lc-Lm(option) | Weight | 450KG | |
| Curing system | LED UV lamp | Print head quantity | 1-5pcs | |
| File | TIFF,JPG,EPS,PDF,PNG,AI,PSD | Products | Cylinder, Conical, Special shape | |
Innovative UV Print Technology

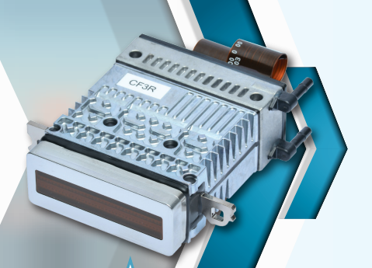

Lance-4 adopted Industrial Printhead-Toshiba CF3R
Long life span: 2-3years
Maximum 60kHz jet frequency
Extremely fast printing speed and high production capacity to meet the demands of large-volume orders.
Variable Droplet Technology (VSDT)
Multi-Gray Scale:Combining high speed and high precision, with smooth gradients and rich detail.

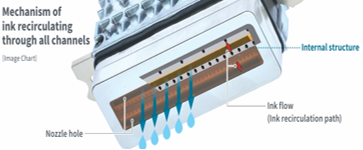

With ink internal circulation system
prevents clogging by keeping ink moving and take away the bubbles making the Stability – the stability of
continuous printing
Stagement structure arrangement
Automatically masks broken lines, reduces sensitivity to nozzle clogging, and lowers scrap rates.
Victorious challenges on conventional print for the bottle？
😭The process is complicated and time-consuming?
⭐5 minutes setting !
😭Expensive Screen Setup Fee?
⭐Freedom artwork draft !
😭Should be a big quantity?
⭐MOQ as 1 pcs only !
😭Can not handle complex imagery efficiently?
⭐Consistently consistent image quality & design !
😭Incapable of reproducing complex images?
⭐Completely consistent quality control !
😭Prone to misalignment?
⭐The error is lower than the naked eye !
Solution Advantages

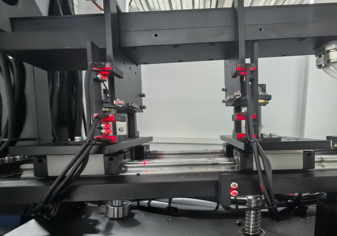

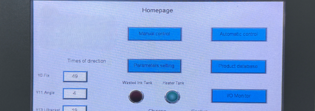

Adjusting the bottle’s angle by PLC System
input the diameters of the bottle and both holding points parameter by the PLC’s touch screen, then the bottle’s angle would be adjusted automatially.
Time-saving and highly avoiding the operator’s error
Providing possibilities inherent from design for future unmanned factories.
PLC’s Memory Setting
Allowed storing the parameters of the bottle’s fixing position and one-touch recall of settings. minimizse downtime and ensure consistent in switching the printing jobs for various bottle sizes, Achieve high-efficient output.

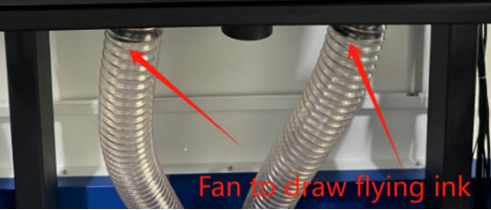

Strong Vacuum fan system
The strong vacuum fan system draws in flying ink during the printing process, reducing the rejection rate of printed products. which is able to adjust the postion to close the different bottle shape surface .

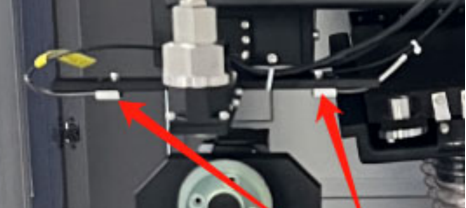

Anti-collision sensor
Most Bottle printer supplier who adopoted the point to point Anti-collosion for cheap price , Our Bottle Printer Lance-4 comes with an multi-point wide-area optical anti-collision sensor to comprehensively monitors the printed object’s rotation is evenly, entirely eliminating any possibility of collision between the object and the printhead.
Auto-height measurement sensor precisely controls the carriage’s movement up and down to ensure that the print head does not collide with printed objects.

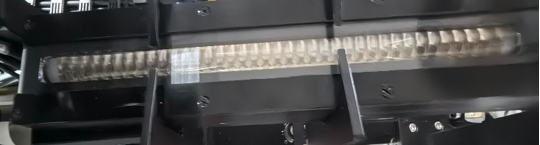

Our customized UV lamp
The UV lamp features independently controlled beads, enabling localized deactivation during printing. This preserves local glossy varnish effects and increases printing speed.

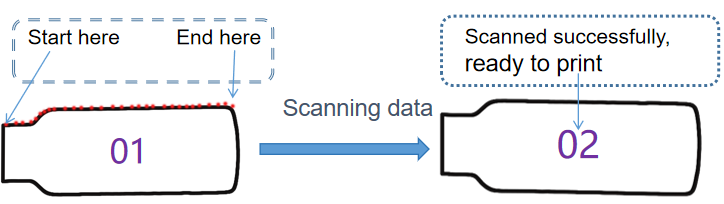

Scanner for bottle
Scanner can automatically scan the irregular bottle shape with high accuracy .
High efficient and accuracy than manual
